New Zone international

IR DOME CAMERA MODEL: DN-576HW

Image Pick-up Device

Number of Pixels

Scanning System

Sync System

Horizontal Resolution

IR Series Distance

IR Staus

IR Power on

Gamma Characteristic

Video Output

LENS

S/N Ratio

Electronic Shutter Time

Operation Temp.

Power supply

Dimension

1/3" SONY EFFIO-E CCD

NTSC: 976(H)x492(V); PAL:976(H)*582(V)

NTSC:525 Lines, 60Field/sec, PAL: 625 lines, 50 Field/sec

Internal Synchronization

650TV Lines

20 Meters

Under 0 Lux by CDS

CDS Auto Control

0.45

1Vp-p,75ohm

3.6mm

48dB (AGC o)

On: Auto, NTSC 1/60~1/100,000Sec, PAL:1/50~1/100,000 Sec O: NTSC 1/60 Sec, PAL 1/50 sec

-10 °C ~ +50 °C RH 95% Max

DC 12V±10%

98(D)*70(H)mm

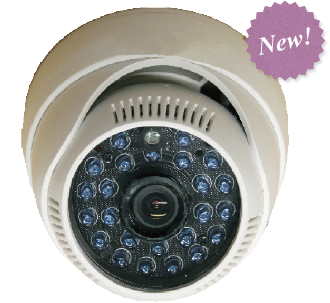

IR Dome Camera

DN-576HW

• Indoor Application
• 1/3" SONY EFFIO-E CCD
• 24pcs IR LED
• Min illumination: 0 Lux IR ON
• Digital Signal Processor
• Highly Sensitivity Sensor

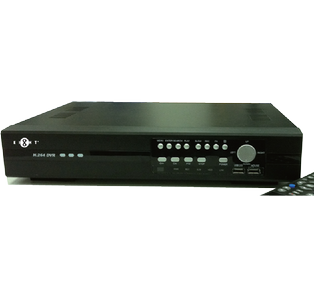

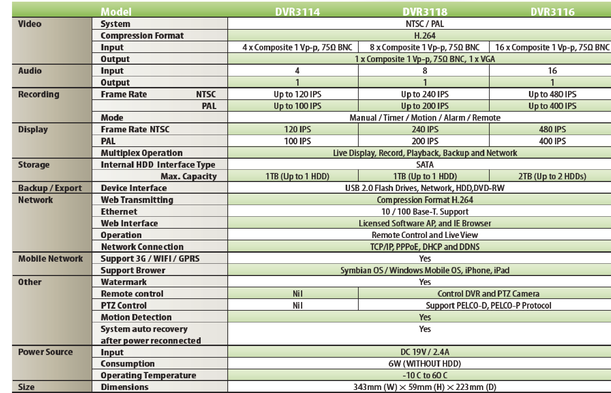

DIGITAL VIDEO RECORDER

DVR-3118

• H.264 Compression format providing crystal clear images with real time
• Allow live Display/Record/ Playback/Backup/Network operation at the
• same time.
• Support 3G Smart-Phone (Symbian/Windows-mobile/iPhone/iPad)
• Remote surveillance with the licensed software AP and IE browser
• Web surveillance supports 5 users simultaneously
• System auto recovery after power reconnected
• Support TCP/IP, PPPOE, DHCP and DDNS network connection
• Activates event recording automatically when alarm is triggered, and
• send alerts with images to designated emails/FTP address
• Allows single-channel viewing of live displays without changing display
• settings on the licensed software AP provided

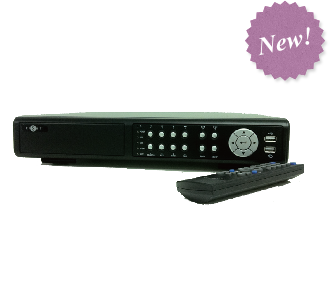

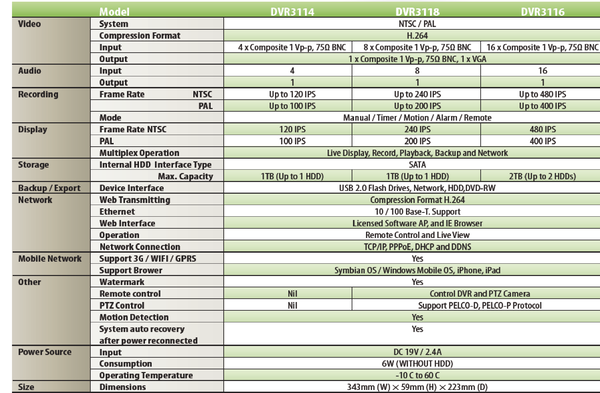

DIGITAL VIDEO RECORDER

DVR-3114 / DVR-3116

• H.264 Compression format providing crystal clear images with real time
• Allow live Display/Record/ Playback/Backup/Network operation at the
• same time.
• Support 3G Smart-Phone (Symbian/Windows-mobile/iPhone/iPad)
• Remote surveillance with the licensed software AP and IE browser
• Web surveillance supports 5 users simultaneously
• System auto recovery after power reconnected
• Support TCP/IP, PPPOE, DHCP and DDNS network connection
• Activates event recording automatically when alarm is triggered, and
• send alerts with images to designated emails/FTP address
• Allows single-channel viewing of live displays without changing display
• settings on the licensed software AP provided

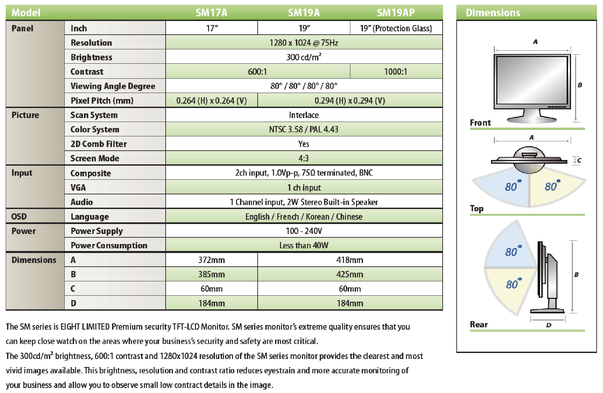

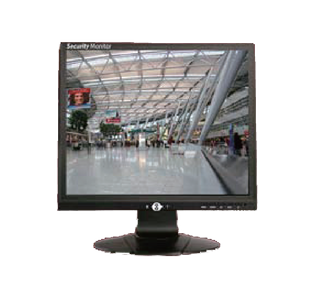

LCD SECURITY MONITOR

SM17A/ SM19A/ SM19AP

• 1280 x 1024 Resolution
• 600:1 High Contrast Ratio
• 300cd/m > High Brightness
• 5ms Response Time
• BNC, VGA inputs
• Comb lter
• Audio in
• Built-in speakers
• Noise reduction
• Built-in power supply
